Application / Use
Designed for rooftop and ground-mounted solar PV systems where portrait-oriented panels require an adjustable tilt angle between 15° and 30° to maximise solar exposure. Suitable for grid-tied, hybrid, and off-grid installations.
Key Benefits
- Adjustable 15-30° tilt angle to optimise solar panel orientation and energy generation.
- 1700 mm angle frame provides strong, stable support for portrait-oriented solar panels.
- Manufactured from high-strength aluminium for long-term durability and corrosion resistance.
- Designed to withstand demanding South African weather conditions.
- Quick and efficient installation for commercial, industrial, and residential solar projects.
Technical Specifications

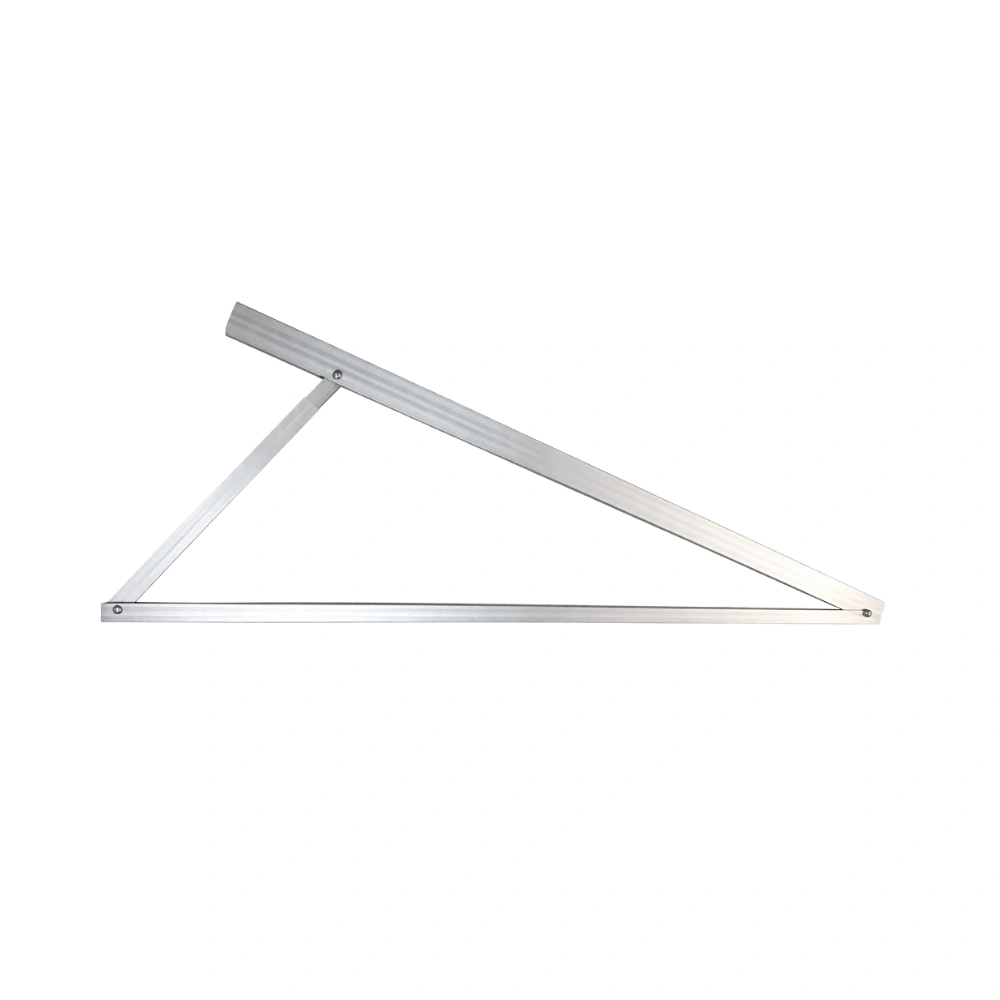

Constructed from 6005-T5/T6 aluminium alloy in accordance with GB/T 6892-2015 standards, this portrait tilt frame features a 1700 mm angle frame with an adjustable tilt range of 15-30°. Engineered for structural strength, durability, and long-term performance in demanding outdoor environments, it offers a minimum yield strength of 200 MPa, providing reliable support for portrait-oriented solar panels while delivering excellent corrosion resistance and stability for commercial, industrial, and residential solar PV installations throughout Southern Africa.
Compatibility
Compatible with a wide range of solar mounting rails and framing systems commonly used in South African commercial, industrial, and residential solar PV installations.
