Application / Use
Designed for use on metal roof solar installations, providing safe access for the installation, inspection, cleaning, and maintenance of rooftop solar PV systems. Suitable for commercial, industrial, and residential applications.
Key Benefits
- Manufactured from premium Marine Grade AL5052 aluminium for exceptional durability and corrosion resistance.
- Provides safe and stable roof access for solar installation and maintenance.
- Designed to withstand demanding South African weather conditions.
- Lightweight, durable, and easy to integrate with compatible solar mounting systems.
Technical Specifications

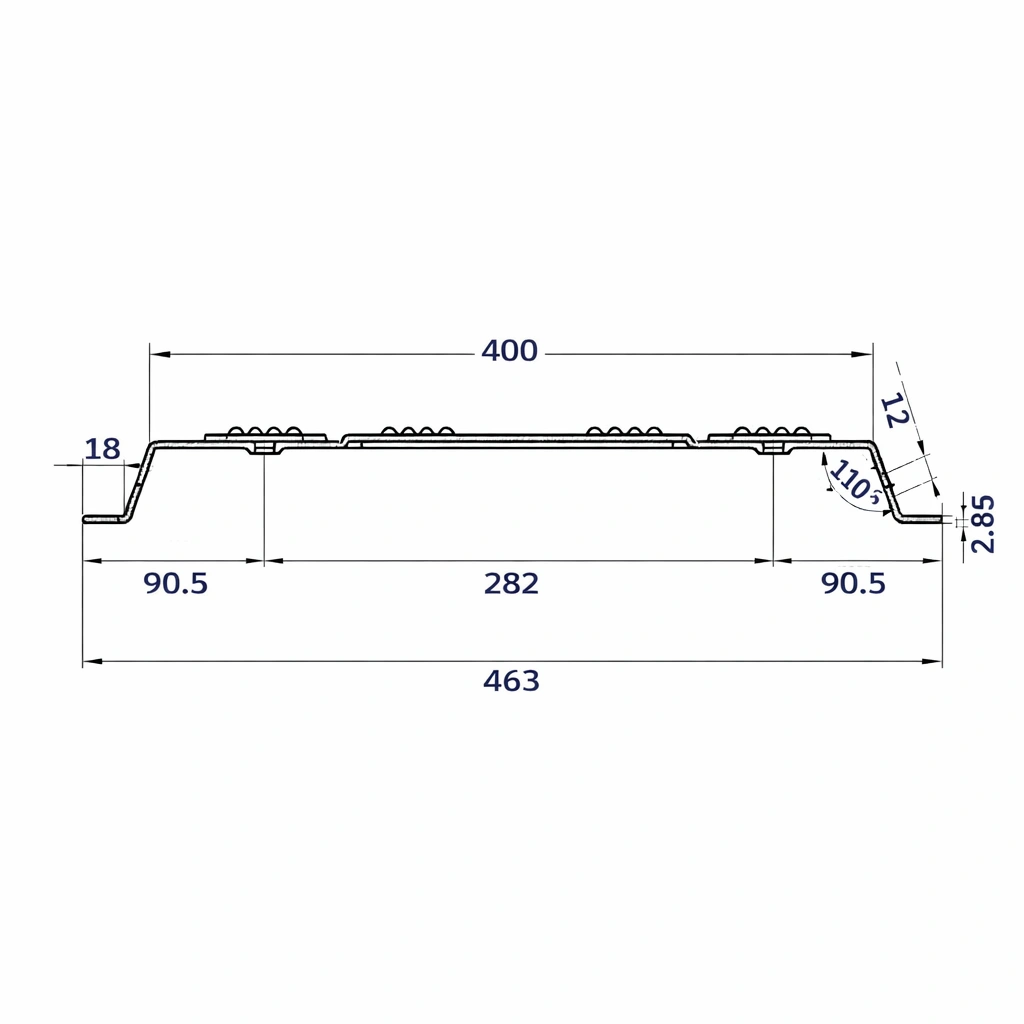

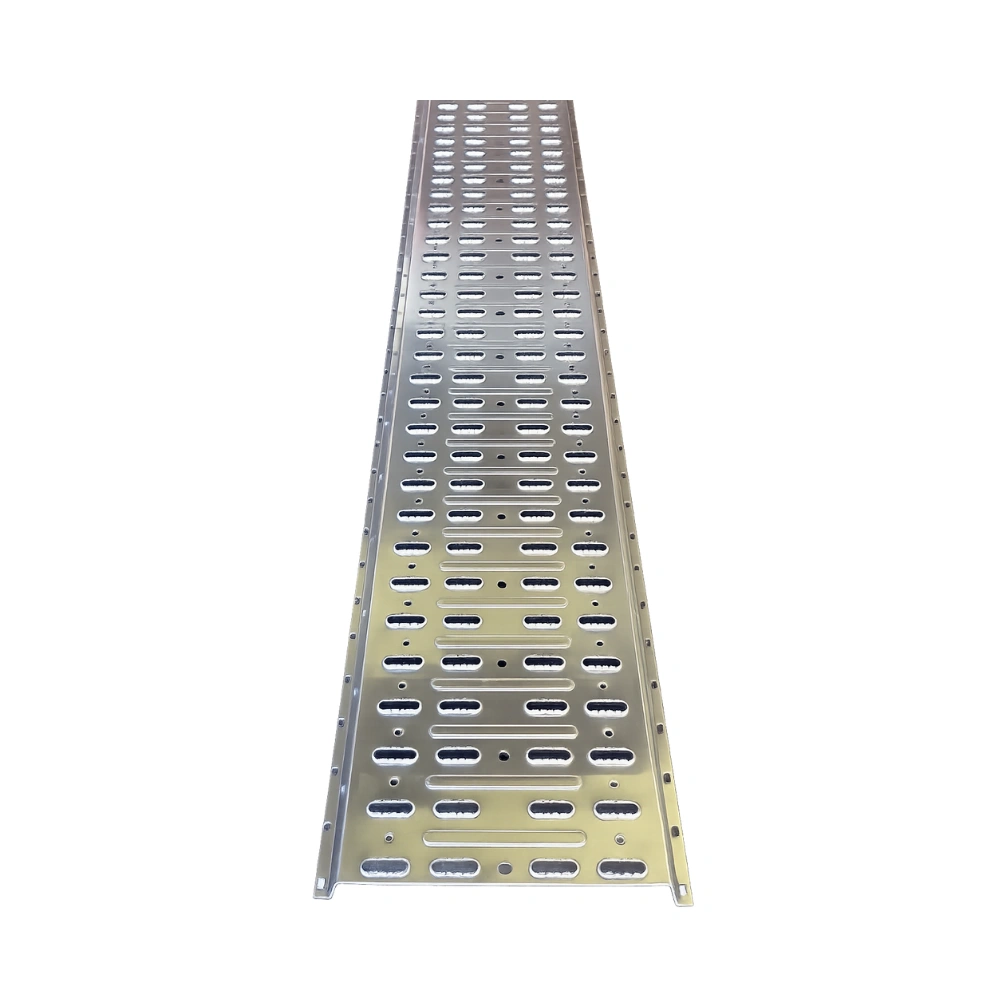

Constructed from premium Marine Grade AL5052 aluminium (462.93 × 5712 × 2.85 mm), this solar roof walkway is engineered to provide safe roof access and long-term performance in demanding environments. Containing approximately 2.5% magnesium and 0.25% chromium, AL5052 delivers outstanding corrosion resistance, structural strength, and durability, making it an excellent choice for commercial, industrial, residential and coastal solar installations.
Compatibility
Compatible with a wide range of metal roof solar mounting systems and designed to integrate seamlessly with standard solar rails and framing components commonly used in Southern African PV installations.
| Description | Dimensions | Notes |
|---|---|---|
| Length Max | 5 712 mm | ± 10 mm |
| Width | 463 mm | ± 5 mm |
| Height of Flange | 50 mm | ± 3 mm |
| Mass / M | 3.83 kg | Net Mass Per |
| Load Max | 185 kg | Per 1 500 mm span |
