Application / Use
Designed for use on metal roof solar installations, providing safe access for the installation, inspection, cleaning, and maintenance of rooftop solar PV systems. Suitable for commercial, industrial, and residential applications.
Key Benefits
- Manufactured from premium ZAM® 275 coated steel for exceptional durability and corrosion resistance.
- Provides safe and stable roof access for solar installation and maintenance.
- Designed to withstand demanding South African weather conditions.
- Strong, lightweight, and easy to integrate with compatible solar mounting systems.
Technical Specifications

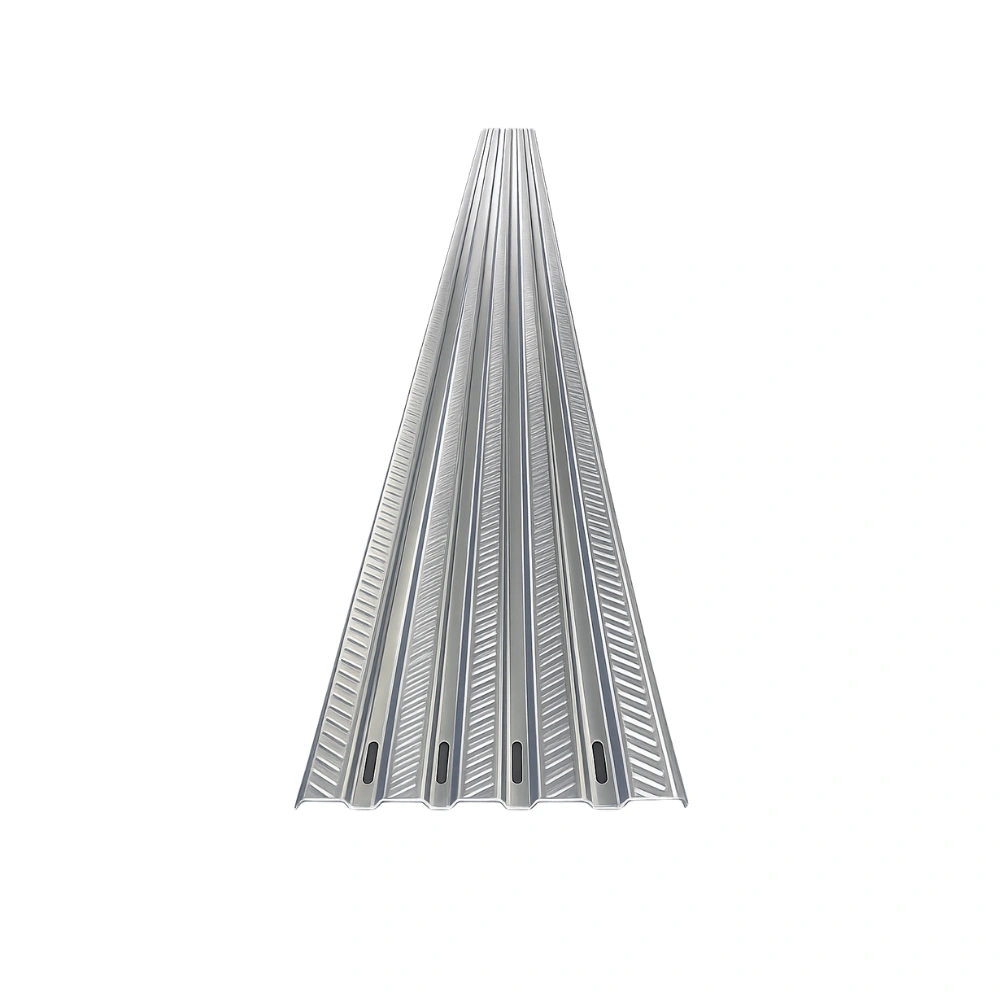

Constructed from Steel ZAM® 275 (400 × 5700 × 1 mm), this solar roof walkway is engineered to provide safe roof access and long-term performance in demanding environments. ZAM® is a high-performance steel coated with a proprietary alloy of zinc, 6% aluminium, and 3% magnesium, delivering exceptional corrosion resistance, excellent edge protection, and superior durability compared to traditional hot-dip galvanised (HDG) steel. This makes it an ideal solution for commercial, industrial, residential and coastal solar installations.
Compatibility
Compatible with a wide range of metal roof solar mounting systems and designed to integrate seamlessly with standard solar rails and framing components commonly used in Southern African PV installations.
| DESCRIPTION | DIMENSION / MASS | COMMENT |
|---|---|---|
| Length Max | 5 700 mm | ± 10 mm |
| Width | 400 mm | ± 5 mm |
| Height of Flange | 17.5 mm | ± 3 mm |
| Mass / M | 3.92 kg | Net Mass per 1 500 mm |
| Load Max | 185 kg | 1 500 mm |
